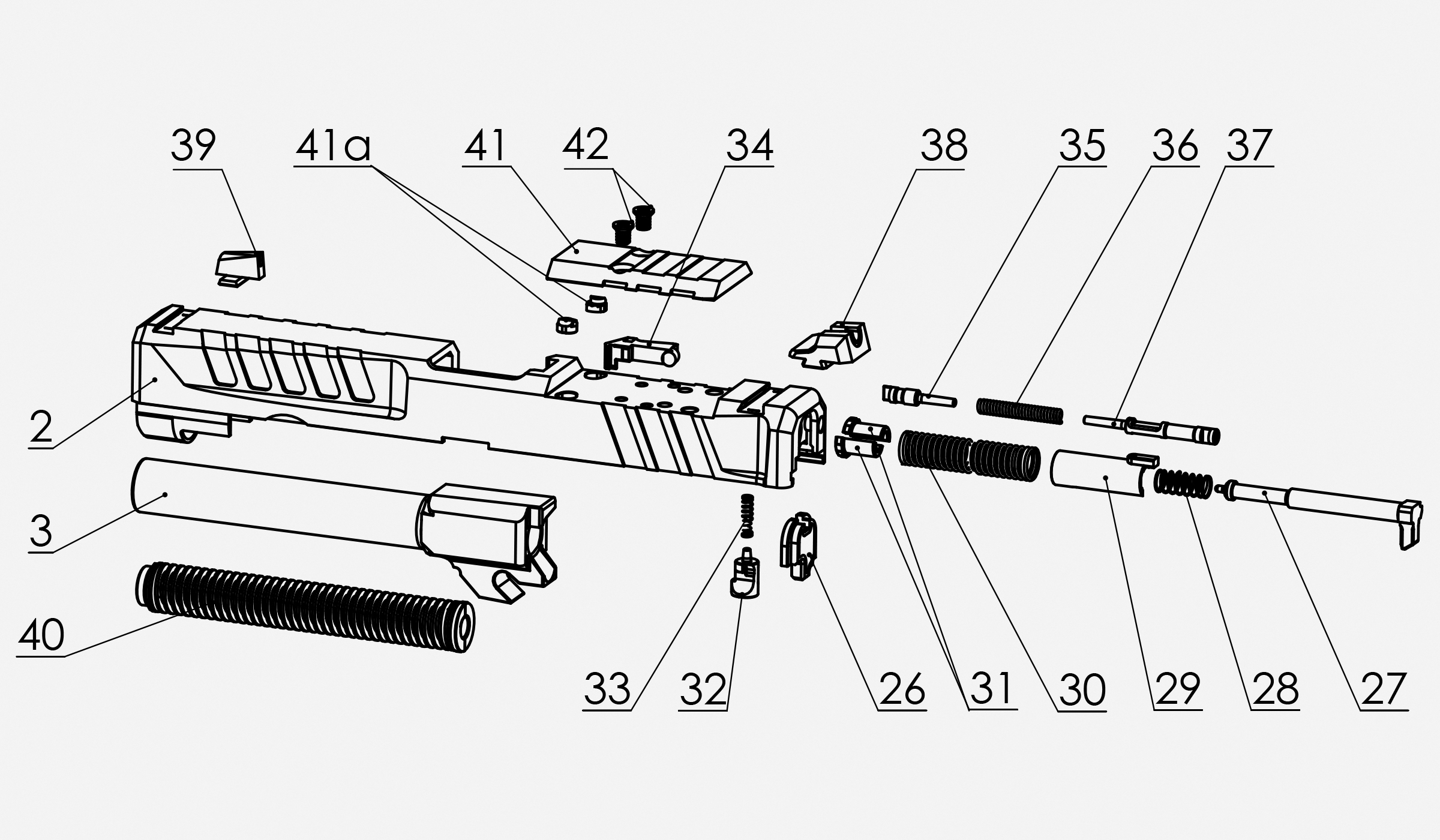

ECHELON SLIDE PARTS LIST

2 Slide

3 Barrel

26 Striker Locking Plate

27 Striker

28 Striker Dampening Spring

29 Striker Guide

30 Striker Spring

31 Striker Spring Retainer

32 Striker Safety

33 Striker Safety Spring

34 Extractor

35 Extractor Pin

36 Extractor Spring

37 Extractor Spring Plate

38 Rear Sight

39 Front Sight

40 Recoil Spring Assembly

41 Variable Interface System Plate

41a Variable Interface System Pins – Leupold, Deltapoint or Dragonfly

41b Variable Interface System Pins – Trijicon RMR

42 Variable Interface System Screws

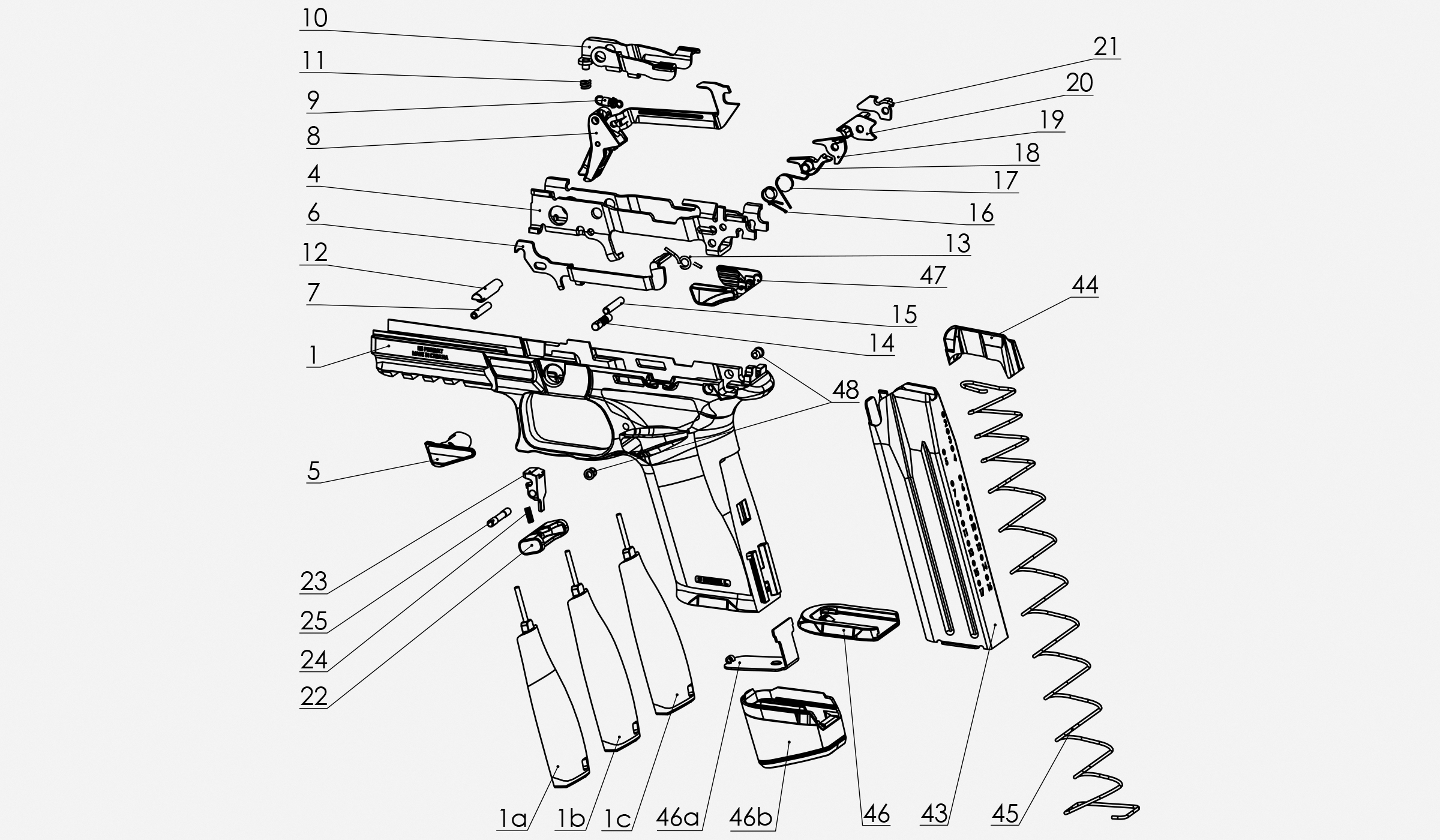

ECHELON FRAME PARTS LIST

1 Grip Module

1a Backstrap - Small

1b Backstrap - Medium

1c Backstrap - Large

4 Receiver

5 Disassembly Lever

6 Magazine Blocking Lever

7 Trigger Pin

8 Trigger Assembly

9 Trigger Bar Spring

10 Slide Stop Lever

11 Slide Stop Lever Spring

12 Slide Stop Lever Pin

13 Magazine Blocking Lever Spring

14 Magazine Blocking Lever Spring Pin

15 Sear Pin

16 Safety Sear Spring

17 Sear Spring

18 Sear

19 Safety Sear

20 Sear Lever

21 Striker Safety Lever

22 Magazine Release Button

23 Magazine Catch

24 Magazine Catch Spring

25 Magazine Catch Pin

43 Magazine Body 17 Round

44 Magazine Follower

45 Magazine Spring

46 Magazine Base

46a Magazine Floor Plate Extension

46b Magazine Extension

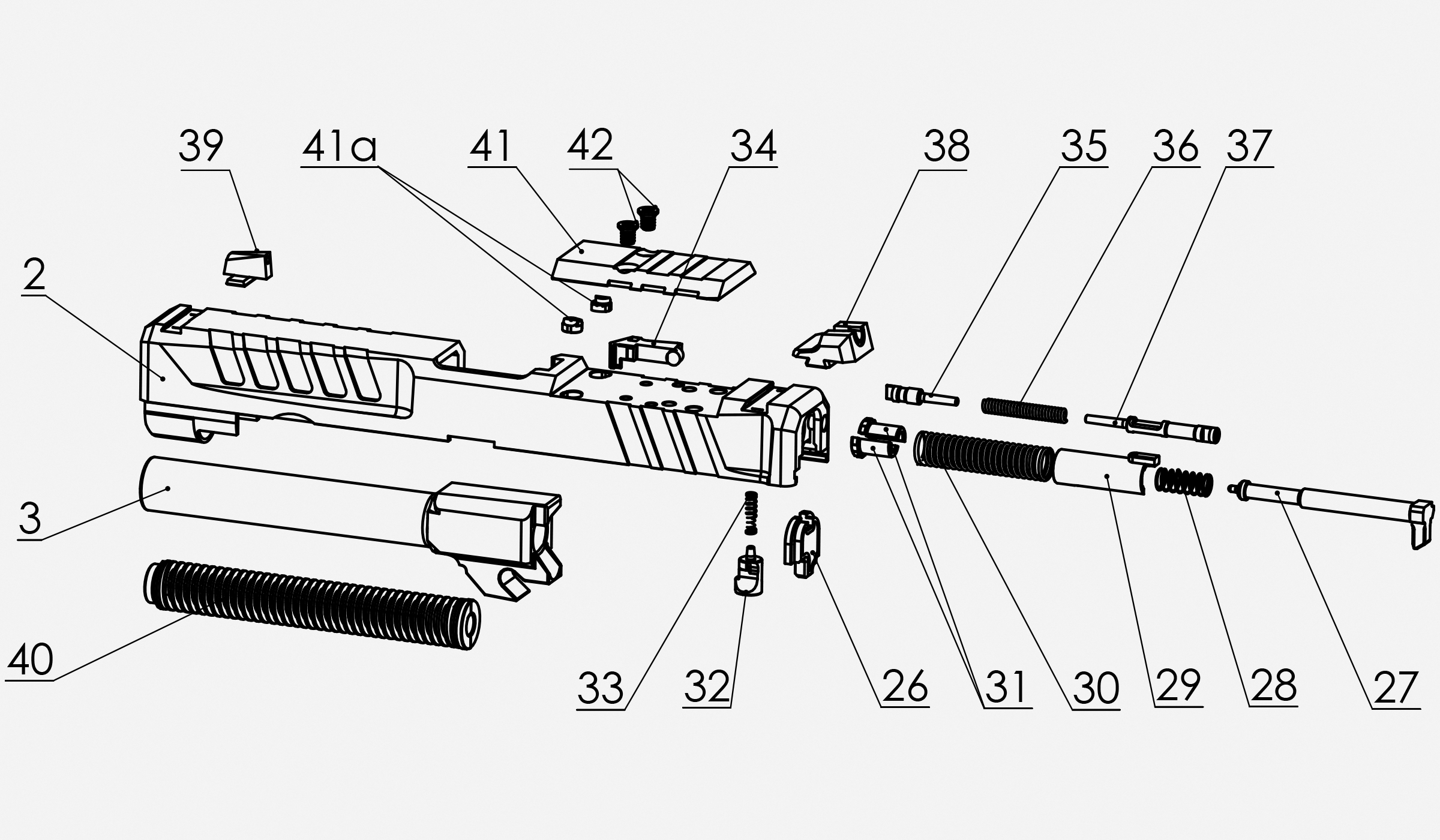

ECHELON MANUAL SAFETY SLIDE PARTS LIST

2 Slide

3 Barrel

26 Striker Locking Plate

27 Striker

28 Striker Dampening Spring

29 Striker Guide

30 Striker Spring

31 Striker Spring Retainer

32 Striker Safety

33 Striker Safety Spring

34 Extractor

35 Extractor Pin

36 Extractor Spring

37 Extractor Spring Plate

38 Rear Sight

39 Front Sight

40 Recoil Spring Assembly

41 Plate OSP

41a OSP Pin - RMR

42 Screw OSP

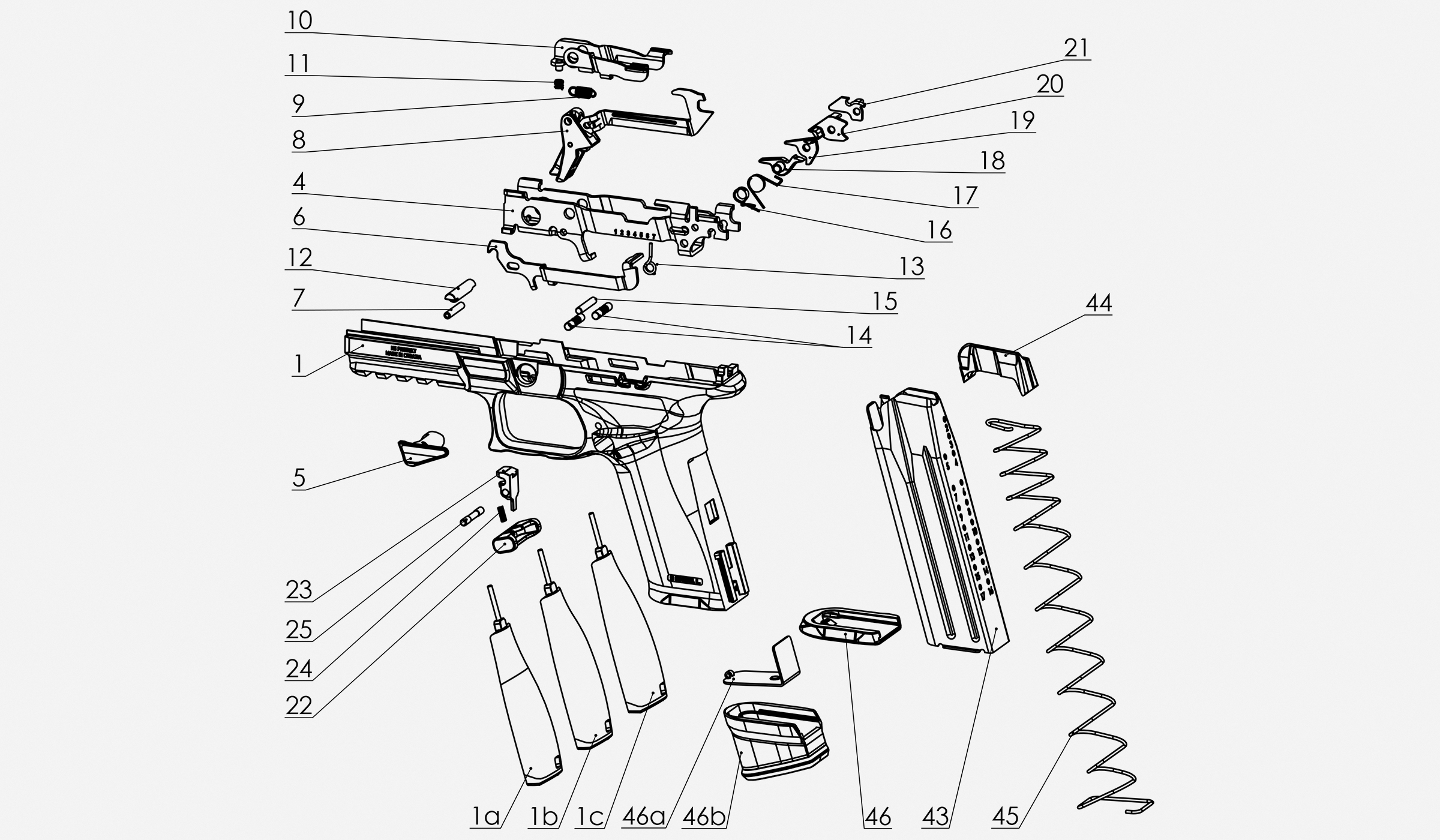

ECHELON FRAME PARTS LIST

1 Grip

1a Backstrap - S

1b Backstrap - M

1c Backstrap - L

4 Receiver

5 Disassembly Lever

6 Magazine Blocking Lever

7 Trigger Pin

8 Trigger Assembly

9 Trigger Bar Spring

10 Slide Stop Lever

11 Slide Stop Lever Spring

12 Slide Stop Lever Pin

13 Magazine Blocking Lever Spring

14 Magazine Blocking Lever Spring Pin

15 Sear Pin

16 Safety Sear Spring

17 Sear Spring

18 Sear

19 Safety Sear

20 Sear Lever

21 Striker Safety Lever

22 Magazine Release Button

23 Magazine Catch

24 Magazine Catch Spring

25 Magazine Catch Pin

43 Magazine Body 17rd

44 Magazine Follower

45 Magazine Spring

46 Magazine Base

46a Magazine Floor Plate Ext - +3rd

46b Magazine Ext - +3rd

47 Manual Safety

48 Spring Plungers

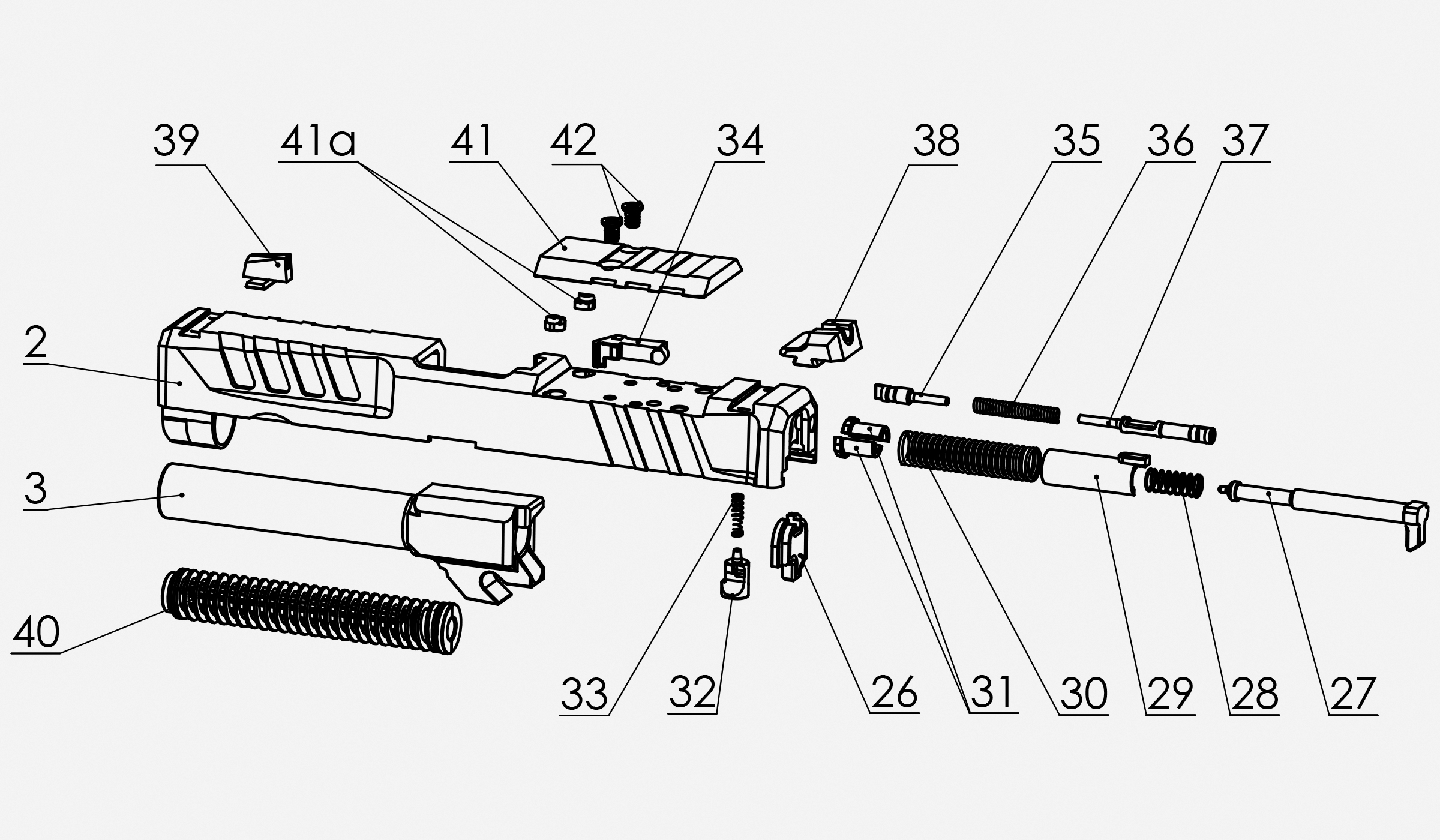

ECHELON 4.0C SLIDE PARTS LIST

2 Slide

3 Barrel

26 Striker Locking Plate

27 Striker

28 Striker Dampening Spring

29 Striker Guide

30 Striker Spring

31 Striker Spring Retainer

32 Striker Safety

33 Striker Safety Spring

34 Extractor

35 Extractor Pin

36 Extractor Spring

37 Extractor Spring Plate

38 Rear Sight

39 Front Sight

40 Recoil Spring Assembly

41 Plate OSP

41a OSP Pin - RMR

42 Screw OSP

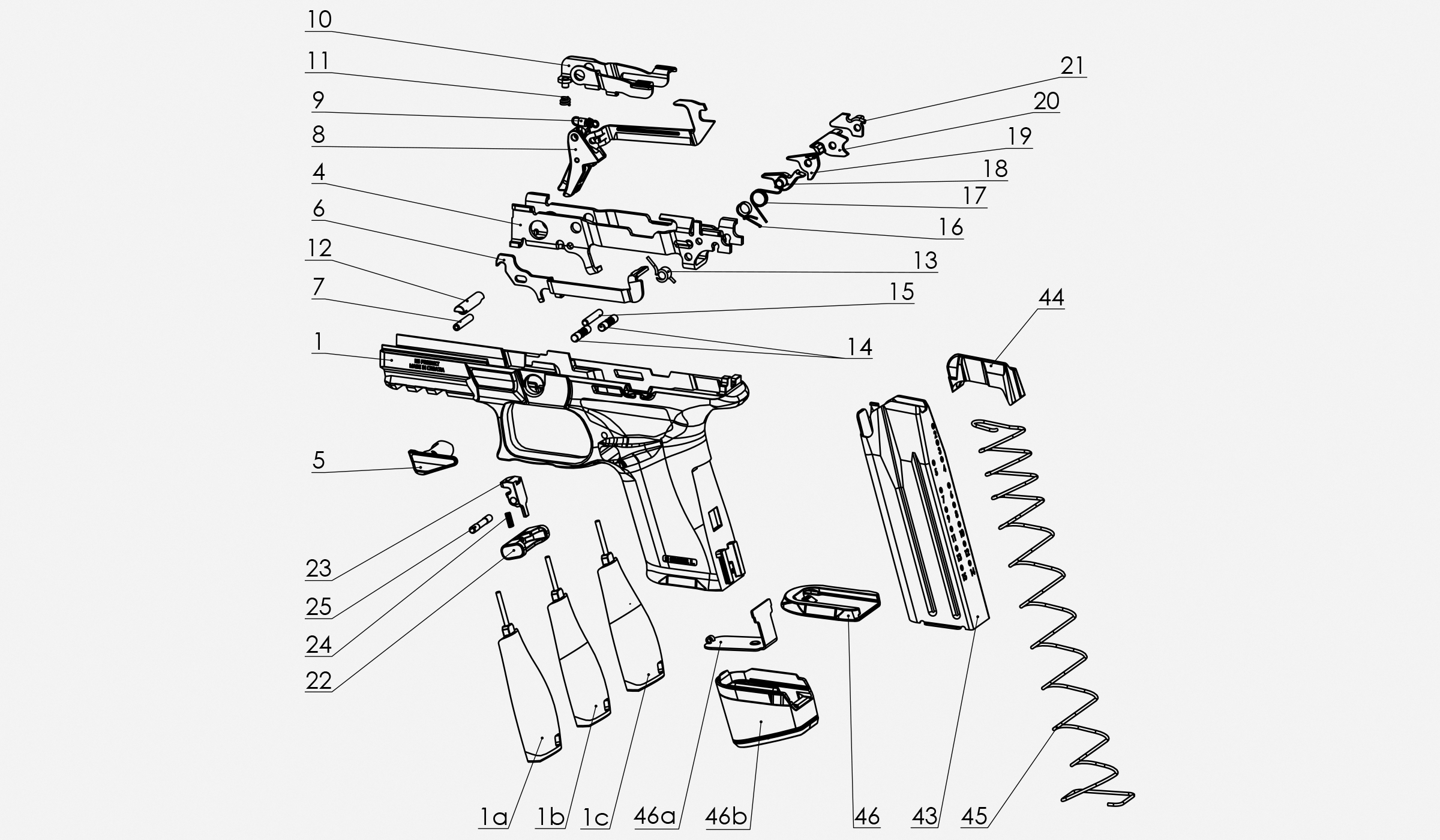

ECHELON 4.0C FRAME PARTS LIST

1 Frame

1a Backstrap S

1b Backstrap M

1c Backstrap L

4 Receiver

5 Disassembly Lever

6 Magazine Blocking Lever

7Trigger Pin

8 Trigger Assembly

9 Trigger Bar Spring

10 Slide Stop Lever

11 Slide Stop Lever Spring

12 Slide Stop Lever Pin

13 Magazine Blocking Lever Spring

14 Magazine Blocking Lever Spring Pin

15 Sear Pin

16 Safety Sear Spring

17 Sear Spring

18 Sear

19 Safety Sear

20 Sear Lever

21 Striker Safety Lever

22 Magazine Release Button

23 Magazine Catch

24 Magazine Catch Spring

25 Magazine Catch Pin

43 Magazine Body 15rd Compact

44 Magazine Follower

45 Magazine Spring

46 Magazine Base

46a Magazine Floor Plate Ext - +3rd

46b Magazine Ext - +3rd

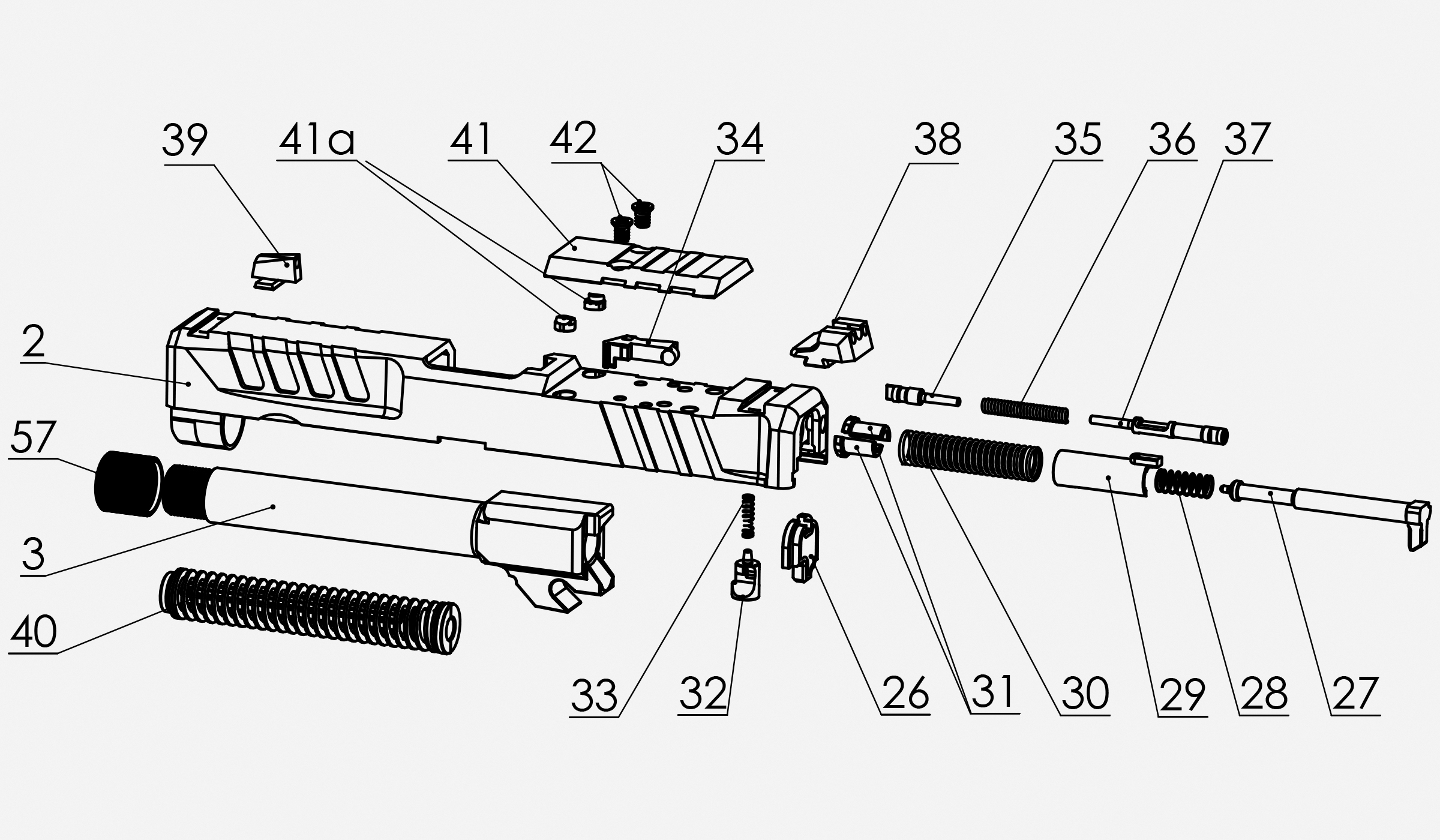

ECHELON 4.0C THREADED SLIDE PARTS LIST

2 Slide

3 Threaded Barrel

26 Striker Locking Plate

27 Striker

28 Striker Dampening Spring

29 Striker Guide

30 Striker Spring

31 Striker Spring Retainer

32 Striker Safety

33 Striker Safety Spring

34 Extractor

35 Extractor Pin

36 Extractor Spring

37 Extractor Spring Plate

38 Rear Sight

39 Front Sight

40 Recoil Spring Assembly

41 Plate OSP

41a OSP Pin - RMR

42 Screw OSP

57 Thread Protector

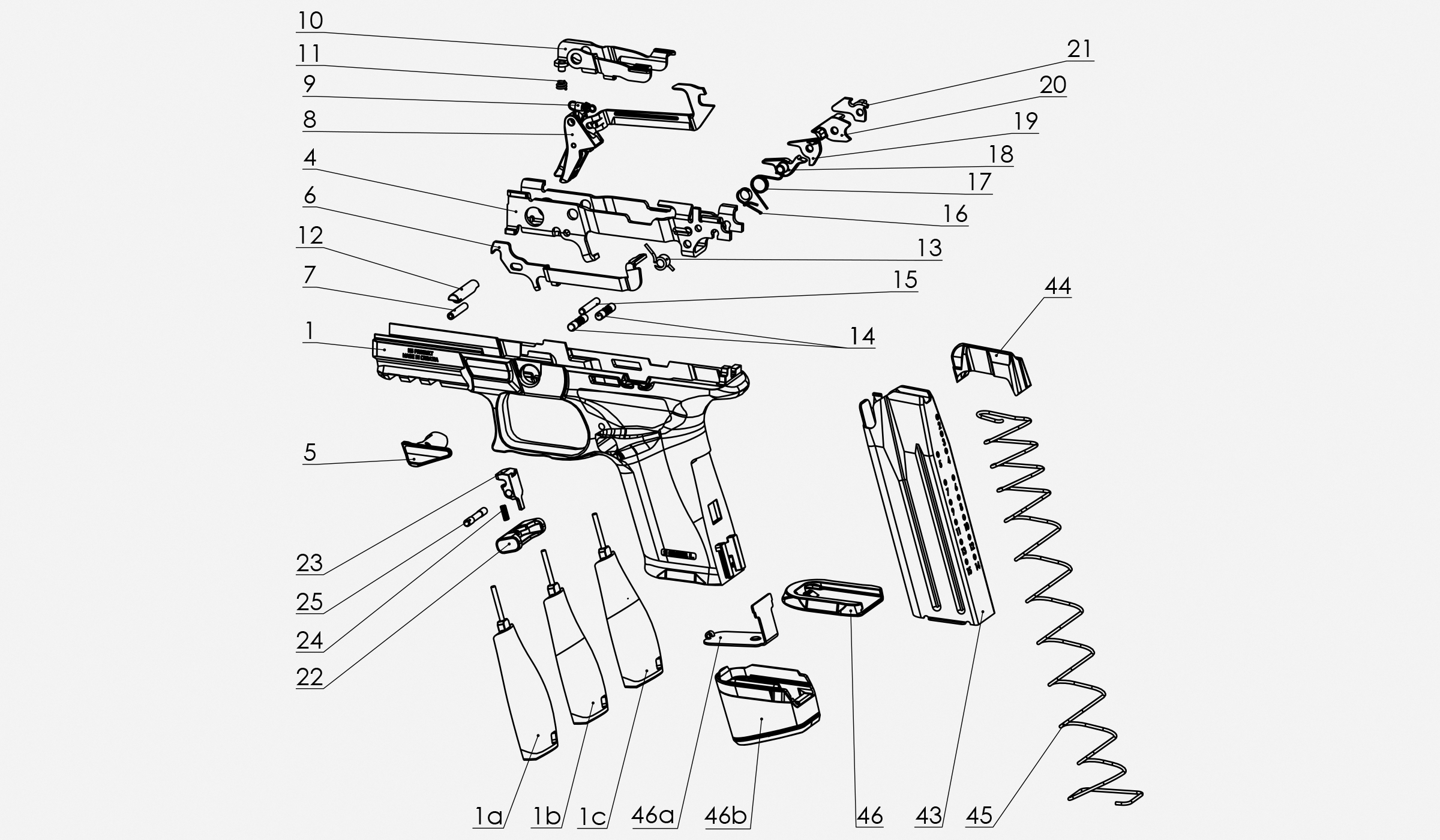

ECHELON 4.0C THREADED FRAME PARTS LIST

1 Frame

1a Backstrap - S

1b Backstrap - M

1c Backstrap - L

4 Receiver

5 Disassembly Lever

6 Magazine Blocking Lever

7 Trigger Pin

8 Trigger Assembly

9 Trigger Bar Spring

10 Slide Stop Lever

11 Slide Stop Lever Spring

12 Slide Stop Lever Pin

13 Magazine Blocking Lever Spring

14 Magazine Blocking Lever Spring Pin

15 Sear Pin

16 Safety Sear Spring

17 Sear Spring

18 Sear

19 Safety Sear

20 Sear Lever

21 Striker Safety Lever

22 Magazine Release Button

23 Magazine Catch

24 Magazine Catch Spring

25 Magazine Catch Pin

43 Magazine Body - 15rd Compact

44 Magazine Follower

45 Magazine Spring

46 Magazine Base

46a Magazine Floor Plate Ext +3rd

46b Magazine Ext +3rd
