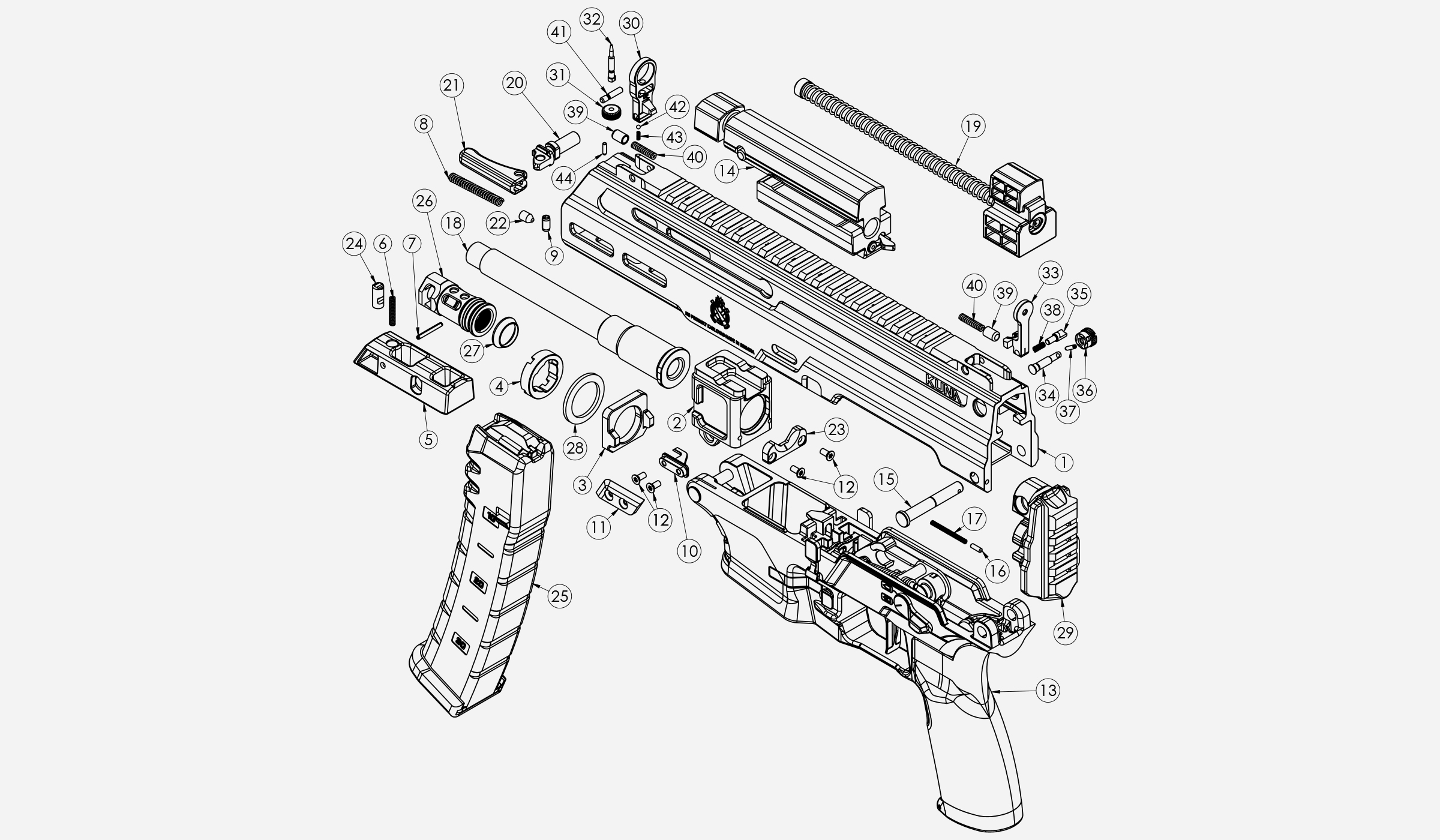

1 Upper Receiver

2 Barrel Carrier

3 Barrel Bracket Carrier

4 Barrel Nut

5 Cocking Handle Support

6 Cocking Handle Support Spring

7 Roll Pin - 2 x 18

8 Cocking Handle Spring

9 Coiled Pin - 4 x 10

10 Ejector

11 Ejector Carrier

12 Screw - M3 x 6.5

13 Lower Receiver Assembly

14 Bolt Assembly

15 Rear Disassembly Pin

16 Rear Disassembly Pin Detent

17 Rear Disassembly Pin Detent Spring

18 Barrel 9MM

19 Recoil Spring

20 Charging Handle Carrier

21 Charging Handle

22 Cocking Handle Pin

23 Feed Ramp

24 Cocking Handle Support Axel

25 Magazine

26 Muzzle Brake

27 Crush Washer

28 Washer

29 Back Plate

30 Front Sight

31 Front Sight Elevation Knob

32 Front Sight Post

33 Rear Sight

34 Rear Sight Windage Screw

35 Rear Sight Position Pin

36 Rear Sight Windage Knob

37 Roll Pin - 2 x 8

38 Position Pin Spring

39 Position Holder Sight

40 Position Holder Sight Spring

41 Coiled Pin - 3 x 14

42 Sight Regulator Ball

43 Sight Regulator Ball Spring

44 Front Sight Axle Safety

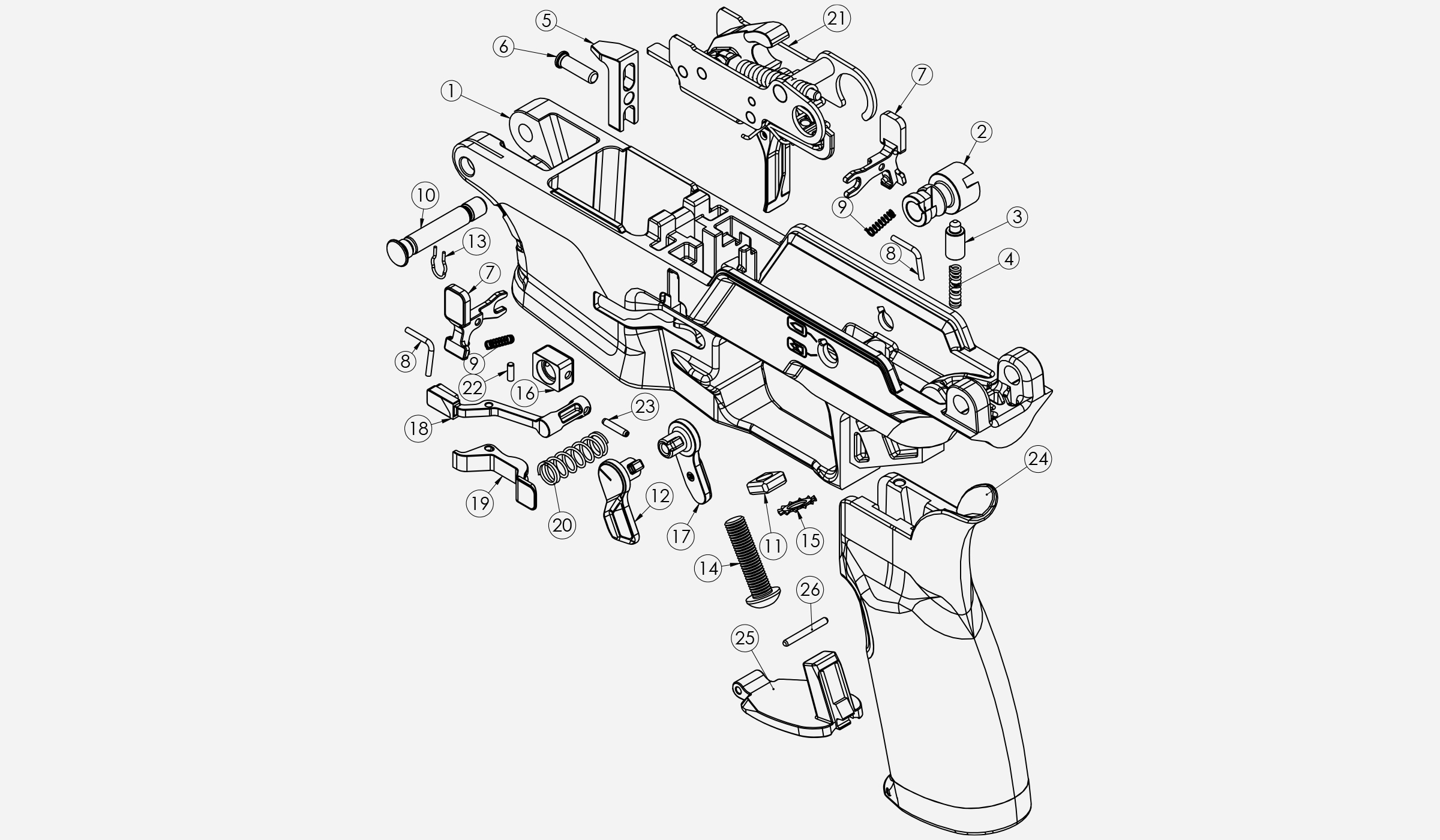

1 Lower Receiver

2 Safety Selector

3 Safety Detent

4 Safety Detent Spring

5 Bolt Catch

6 Bolt Catch Pin

7 Bolt Catch Lever

8 Bolt Catch Lever Axle

9 Bolt Catch Spring

10 Front Disassembly Pin

11 Pistol Grip Nut

12 Safety Lever Left

13 Front Disassembly Pin Spring

14 Pistol Grip Screw

15 Pistol Grip Washer

16 Magazine Button Release

17 Safety Lever Right

18 Magazine Catch

19 Magazine Release Lever

20 Magazine Catch Spring

21 Trigger Mechanism

22 Magazine Catch Pin

23 Roll Pin - 2 x 10

24 Pistol Grip

25 Pistol Grip Cover

26 Pistol Grip Pin

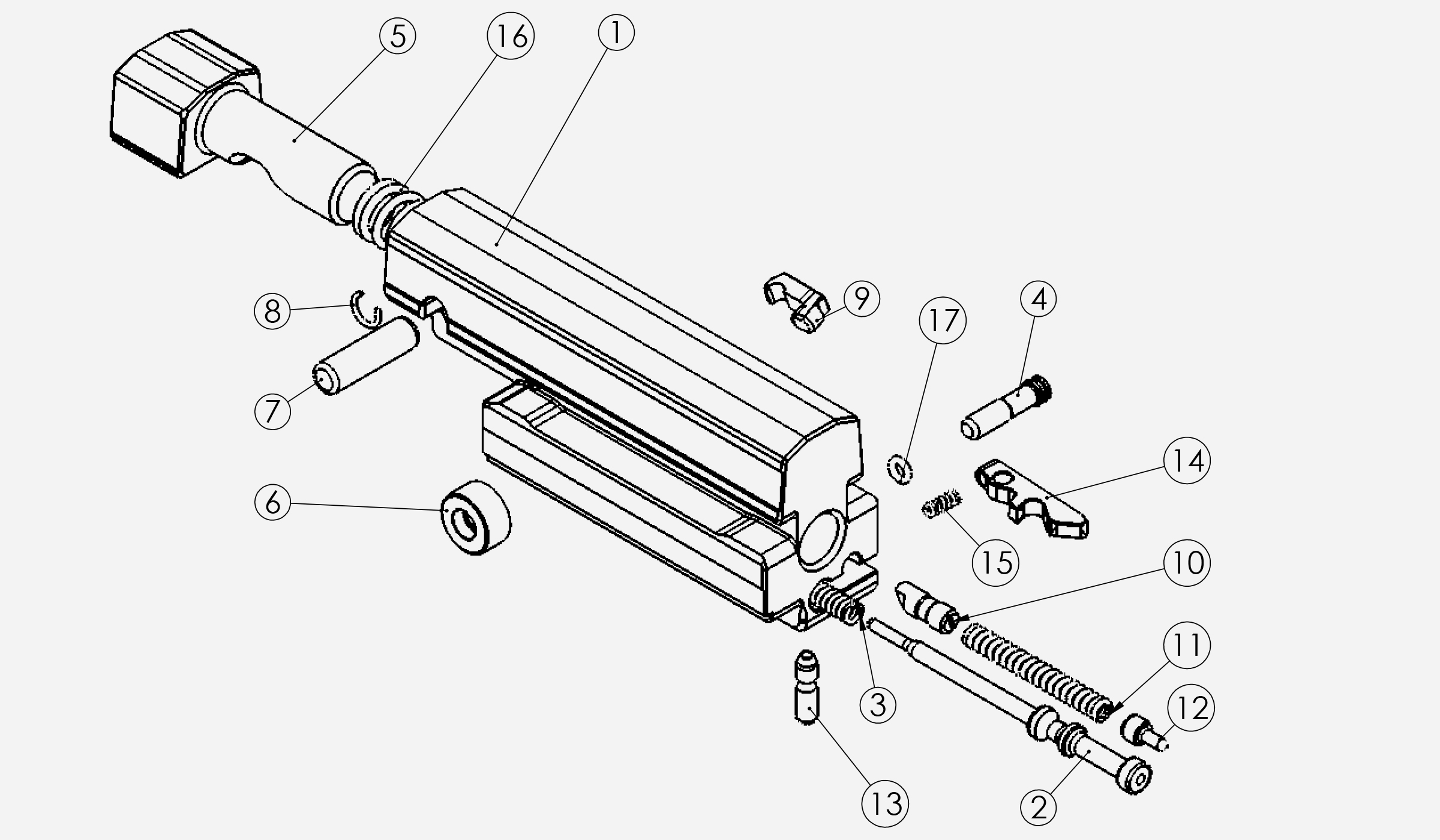

1 Bolt

2 Firing Pin

3 Firing Pin Spring

4 Firing Pin Retainer Pin

5 Bolt Lock

6 Locking Roller

7 Locking Roller Pin

8 Locking Roller Pin Retainer Clip

9 Extractor

10 Extractor Plunger

11 Extractor Spring

12 Extractor Spring Retainer

13 Extractor Retainer Pin

14 Firing Pin Block

15 Firing Pin Block Spring

16 Bolt Lock Spring

17 Roller Retainer Ring

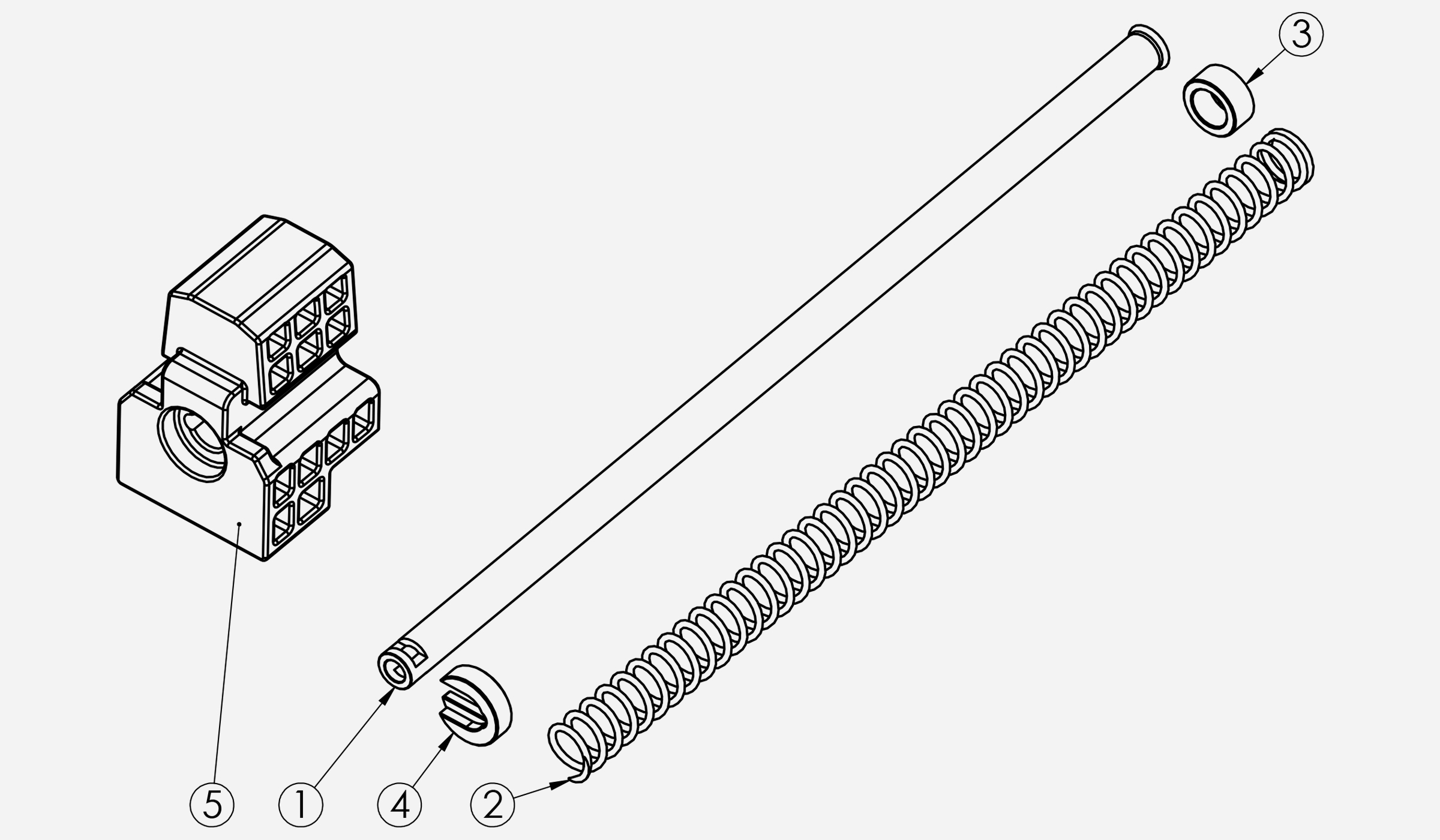

1 Recoil Spring Guide Rod

2 Recoil Spring

3 Recoil Spring Retainer

4 Recoil Spring Guide Lock

5 Buffer

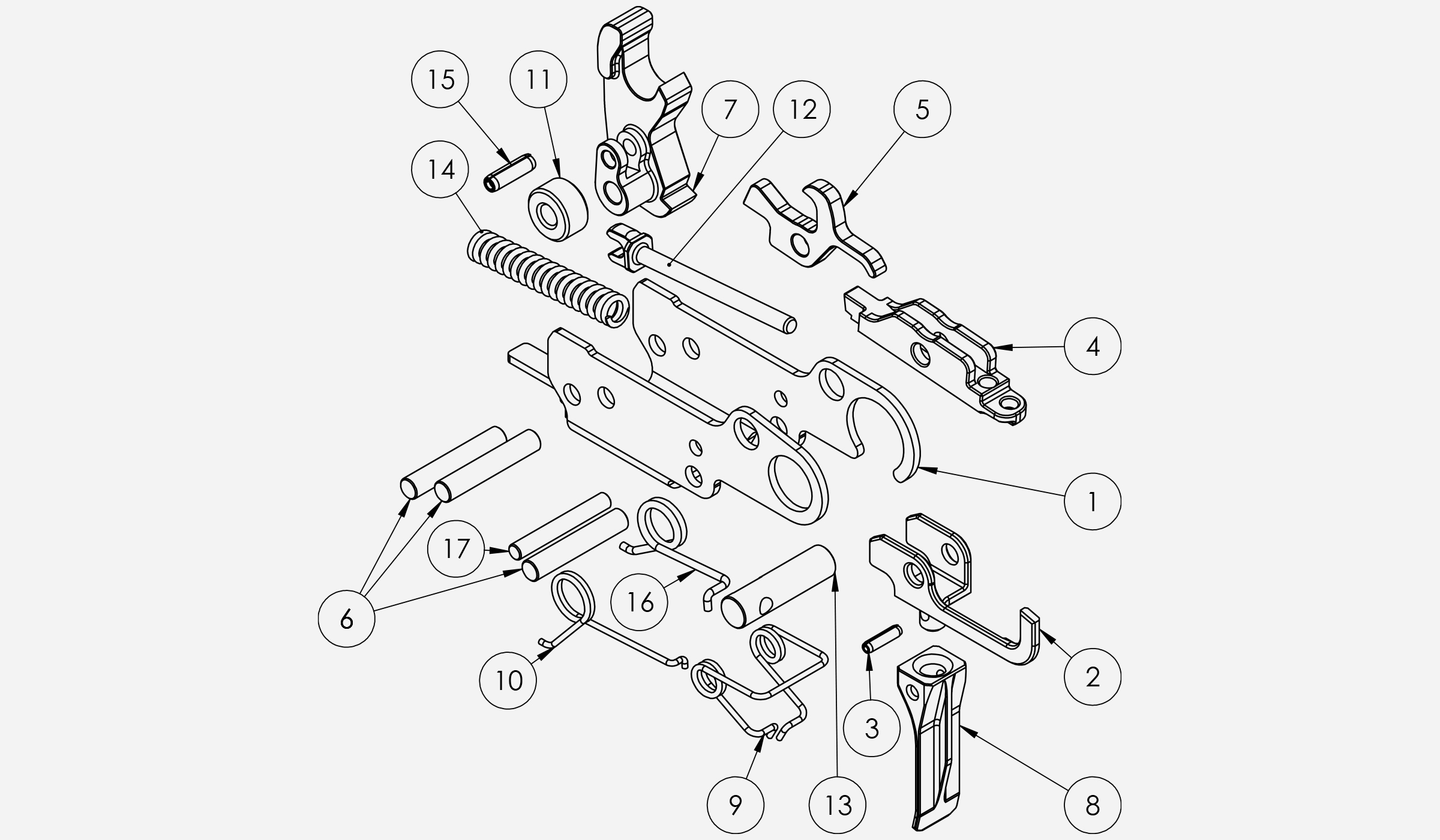

1 Trigger Housing

2 Trigger Body

3 Roll Pin - 2 x 8

4 Trigger Sear

5 Discounnector

6 Trigger Mechanism Pin

7 Hammer

8 Trigger

9 Disconnector Spring

10 Trigger Spring

11 Trigger Spacer

12 Hammer Spring Guide

13 Hammer Spring Guide Pin

14 Hammer Spring

15 Roll Pin - 3 x 10

16 Sear Spring

17 Trigger Mechanism Pin

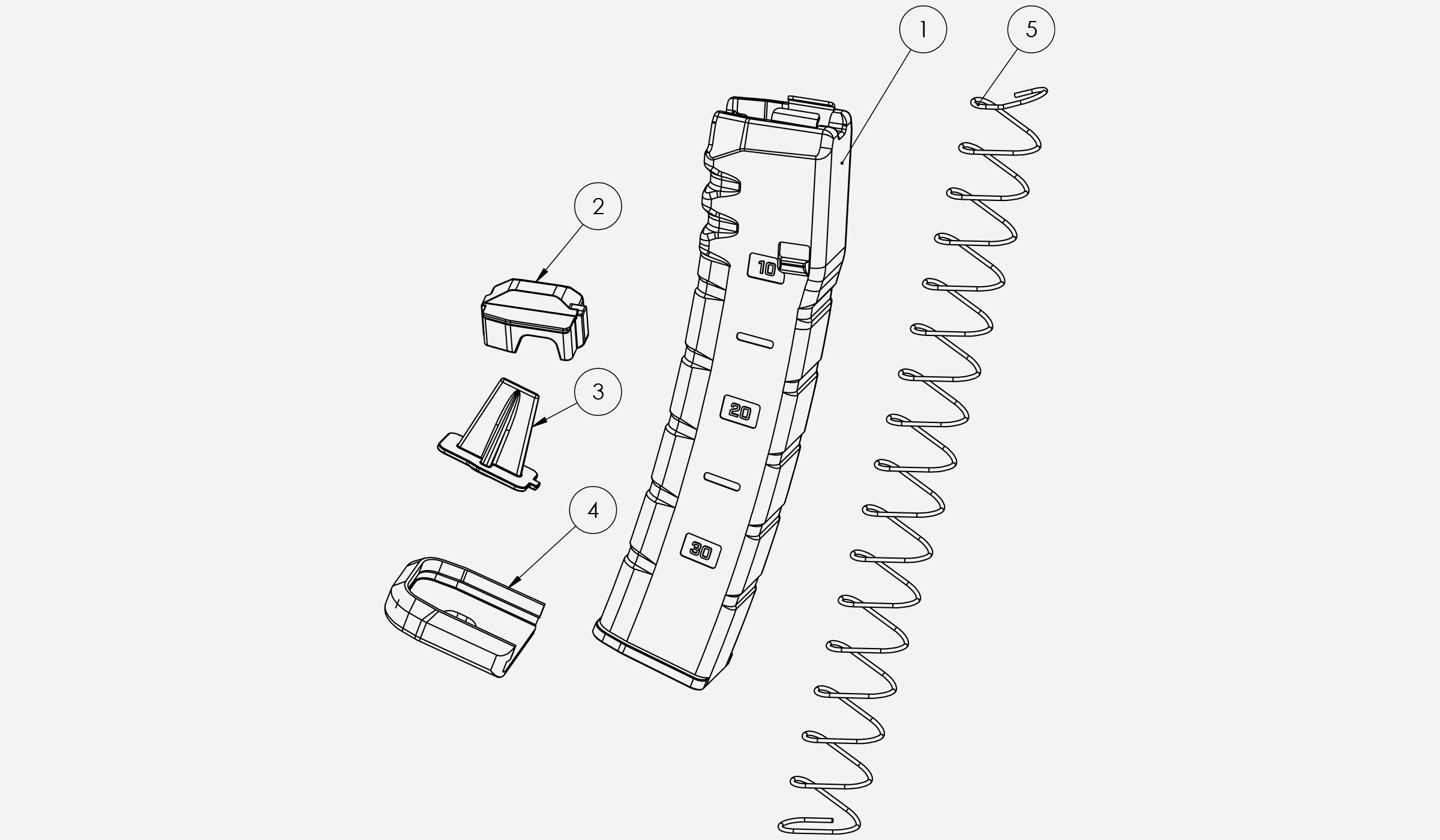

1 Magazine Housing

2 Magazine Follower

3 Magazine Locking Plate

4 Magazine Floorplate

5 Magazine Spring
