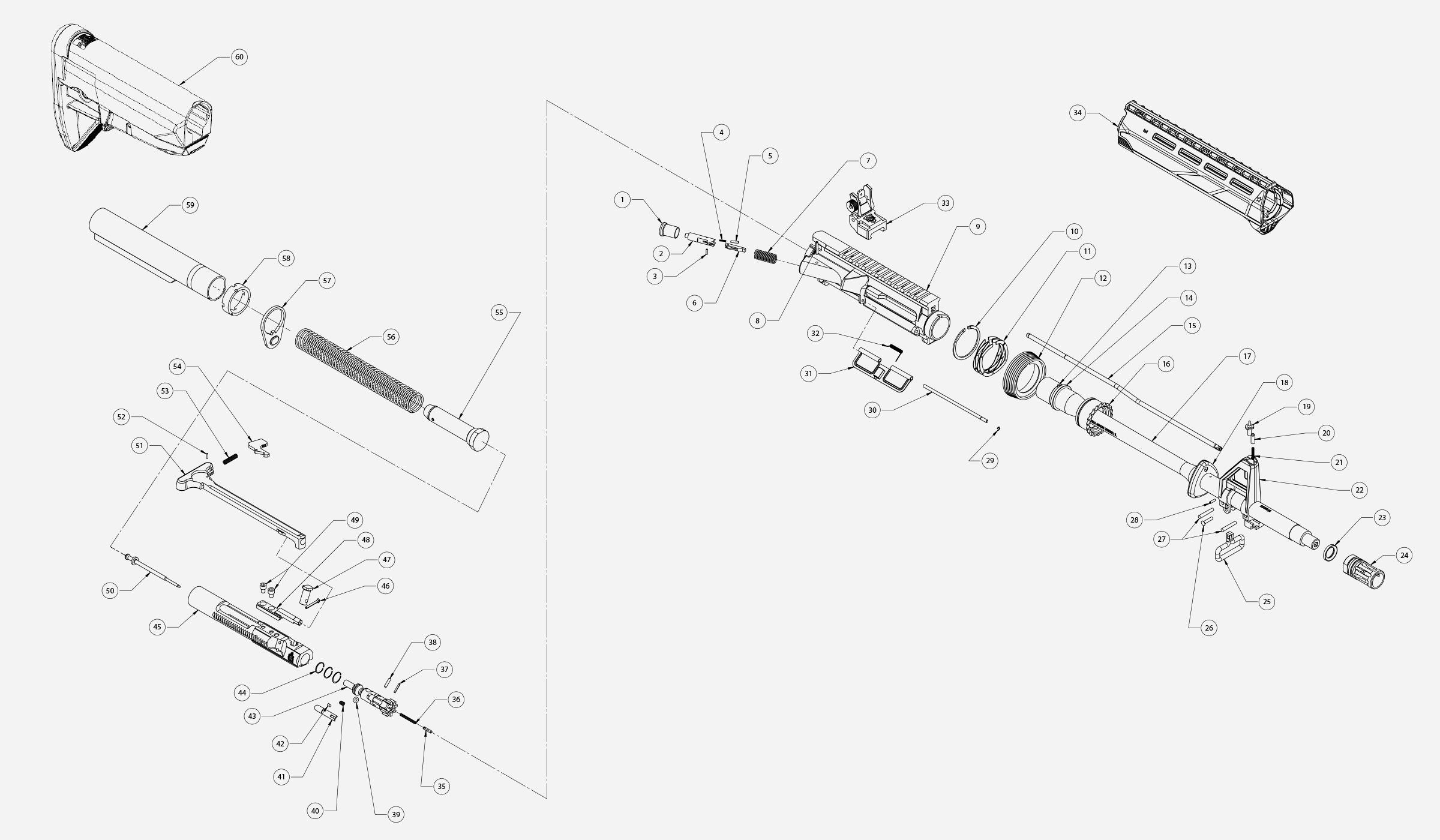

SAINT® UPPER RECEIVER

1 Forward Assist Plunger Cap

2 Forward Assist Plunger

3 Forward Assist Plunger Pawl Spring Pin

4 Forward Assist Pawl Spring

5 Forward Assist Pawl Detent

6 Forward Assist Pawl

7 Forward Assist Spring

8 Forward Assist Spring Pin

9 Upper Receiver

10 Handguard Snap Ring

11 Weld Spring

12 Delta Ring

13 Barrel Extension Pin

14 Barrel Extension

15 Mid Length Gas Tube

16 Barrel Nut

17 Barrel

18 Handguard Cap Triangle

19 Front Sight Post

20 Front Sight Detend

21 Front Sight Detent Spring

22 Front Sight Base

23 Crush Washer

24 Flash Suppressor

25 Front Sling Swivel

26 Front Sling Swivel Rivet

27 Front Sight Taper Pin

28 Gas Tube Roll Pin

29 Ejection Port Cover Snap Ring

30 Ejection Port Cover Pin

31 Ejection Port Cover Assembly

32 Ejection Port Cover Spring

33 Flip UP Rear Sight Assembly

34 Handguard

35 Ejector

36 Ejector Spring

37 Ejector Roll Pin

38 Extractor Pin

39 Extractor O-Ring

40 Extractor Spring

41 Extractor

42 Extractor Spring Insert

43 Bolt

44 Bolt Gas Ring

45 Bolt Carrier

46 Firing Pin Retaining Pin

47 Cam Pin

48 Bolt Carrier Key

49 Bolt Carrier Key Screw

50 Firing Pin

51 Charging Handle

52 Charging Handle Latch Roll Pin

53 Charging Handle Latch Spring

54 Charging Handle Latch

55 Buffer Assembly H Style

56 Buffer Spring

57 Receiver End Plate (Collar)

58 Receiver, Extension Castle Nut

59 Receiver Extension Tube

60 Buttstock

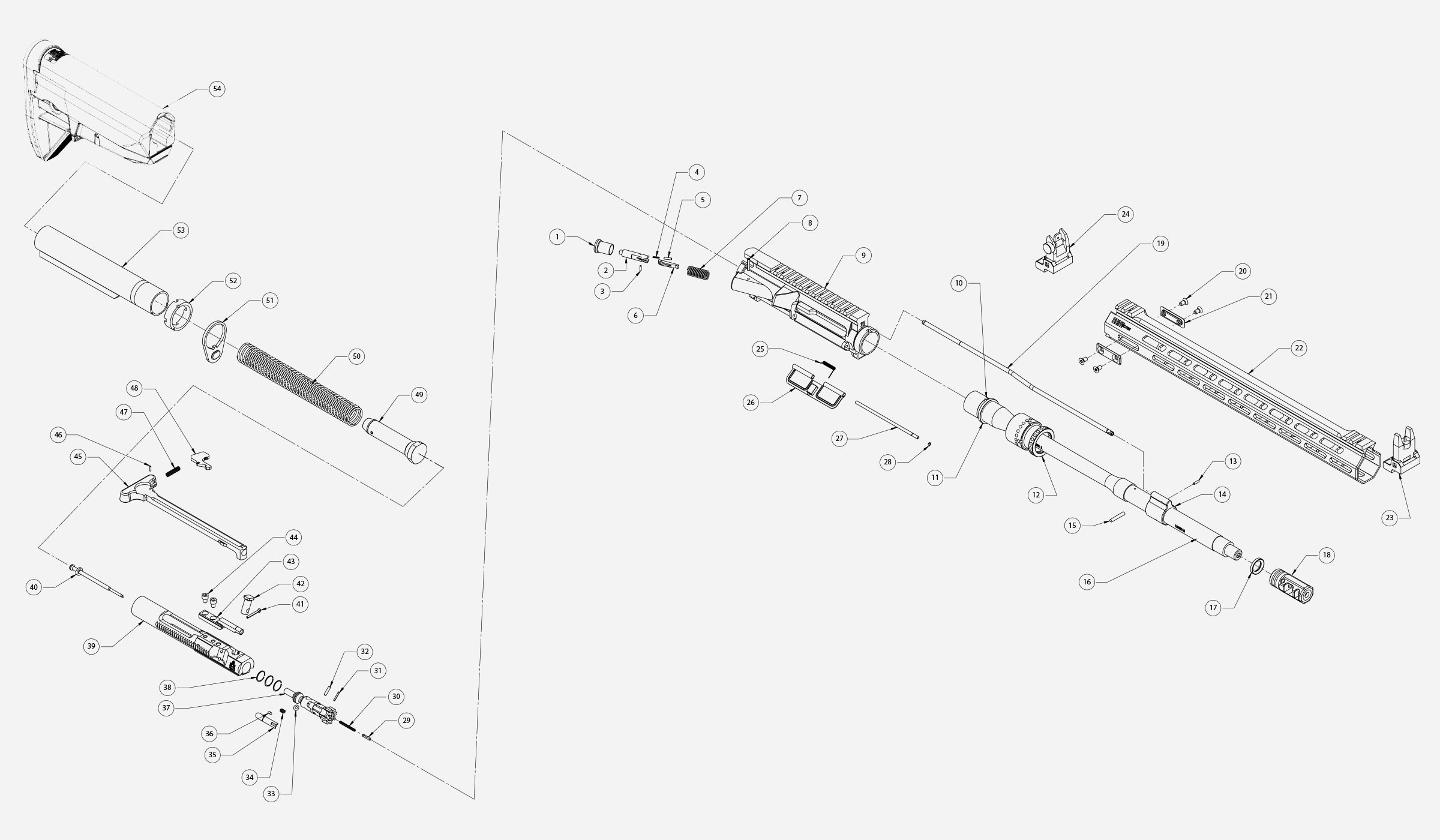

SAINT® Victor - Upper Receiver

1 Forward Assist Plunger Cap

2 Forward Assist Plunger

3 Forward Assist Plunger Pawl Spring Pin

4 Forward Assist Pawl Spring

5 Forward Assist Pawl Detent

6 Forward Assist Pawl

7 Forward Assist Spring

8 Forward Assist Spring Pin

9 Upper Receiver

10 Barrel Extension Pin

11 Barrel Extension

12 Springfield Armory® Free Floating Handguard Barrel Nut

13 Gas Tube Roll Pin

14 AR Low Profile Gas Block

15 Front Sight Taper Pin

16 Barrel

17 Crush Washer

18 SA Muzzle Brake

19 Mid Length Gas Tube

20 8-32 5/16 Flat Torx Screw

21 Handguard Anchoring Plate

22 Springfield Armory® AR Free Float Handguard

23 Flip Up Front Sight Assembly

24 Flip Up Rear Sight Assembly

25 Ejection Port Cover

26 Ejection Port Cover

27 Ejection Port Cover Pin

28 Ejection Port Cover Snap Ring

29 Bolt Ejector

30 Bolt Ejector Spring

31 Bolt Ejector Roll Pin

32 Bolt Extractor Pin

33 AR Extractor O-Ring

34 Bolt Extractor Spring

35 Bolt Extractor

36 Bolt Extractor Spring Insert

37 Bolt

38 Bolt Gas Ring

39 Bolt Carrier

40 Firing Pin

41 Firing Pin Retaining Pin

42 Cam Pin

43 Bolt Carrier Key

44 Bolt Carrier Key Screw

45 Charging Handle

46 Charging Handle Latch Roll Pin

47 Charging Handle Latch Spring

48 Charging Handle Latch

49 Buffer Assembly H Style

50 Buffer Spring

51 Receiver End Plate (Collar)

52 Receiver Extension Castle Nut

53 Receiver Extension Tube

54 Buttstock

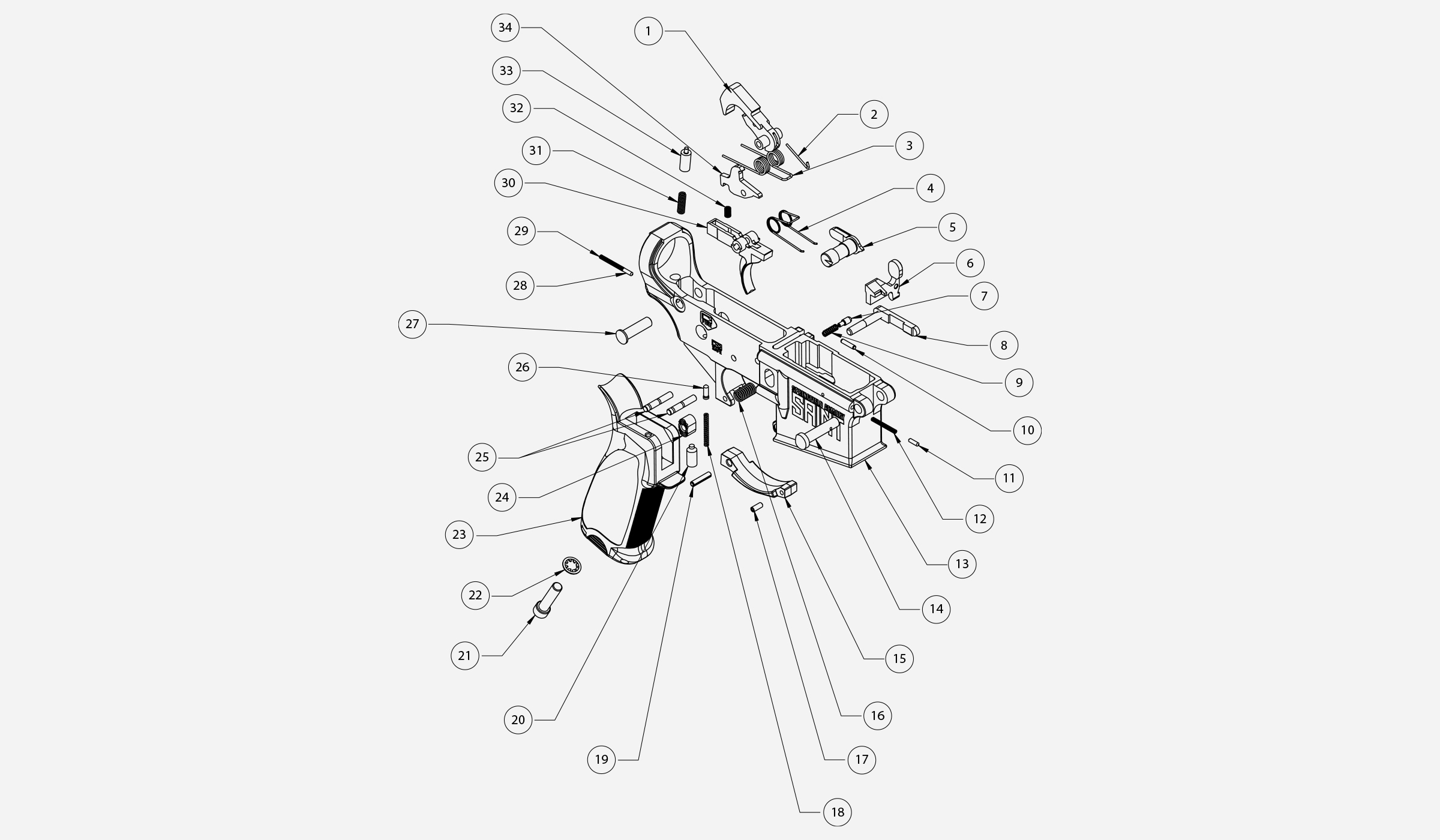

SAINT® LOWER RECEIVER

1 Hammer

2 Hammer Pin Spring

3 Hammer Spring

4 Trigger Springs

5 Safety Selector

6 Bolt Catch

7 Bolt Catch Plunger

8 Magazine Catch

9 Bolt Catch Plunger Spring

10 Bolt Catch Pin

11 Take-Down Detent

12 Take-Down Detent Spring

13 Lower Receiver

14 Pivot Pin

15 Trigger Guard

16 Magazine Catch Spring

17 Trigger Guard Set Screw/Pin

18 Safety Selector Detent Spring

19 Trigger Guard Pivot Roll Pin

20 Accu-Tite™ Tension Screw

21 Pistol Grip Screw

22 Pistol Grip Screw Lock Washer

23 Pistol Grip

24 Magazine Catch Button

25 Hammer & Trigger Pin

26 Safety Selector Detent

27 Take-Down Pin

28 Take-Down Detent

29 Take-Down Detent Spring

30 Trigger

31 Buffer Retainer Spring

32 Disconnector Spring

33 Buffer Retainer

34 Disconnector

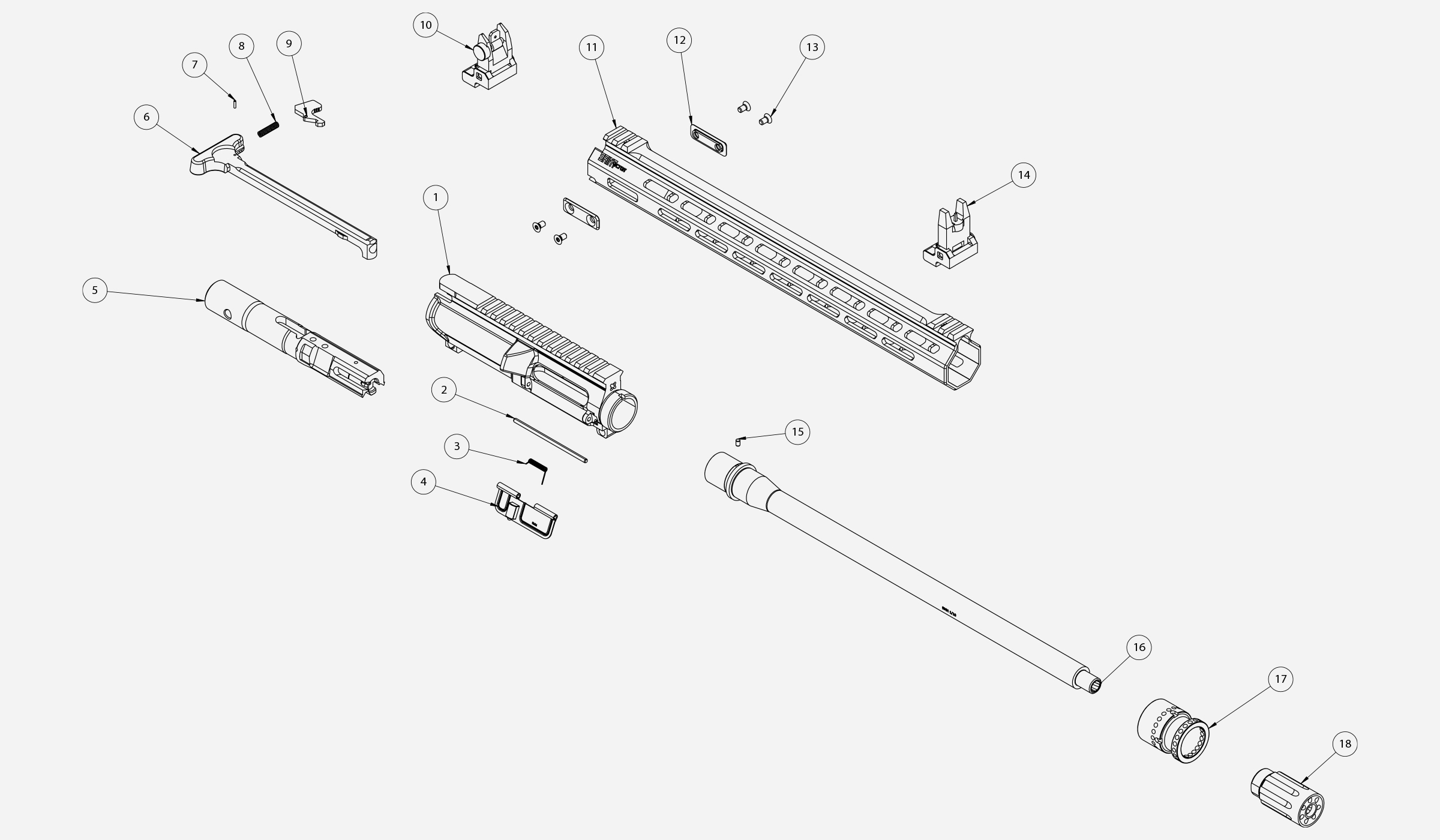

SAINT® Victor - 9MM Carbine Upper Receiver



1 9MM Upper Receiver

2 Ejection Port Cover Pin

3 Ejection Port Cover Spring

4 9MM Ejection Port Cover Assembly

5 9MM Blowback BCG

6 Charging Handle

7 1/16 x 1/4 Roll Pin

8 Charging Handle Latch Spring

9 Charging Handle Latch

10 Spring Loaded Flip Up Rear Sight

11 Victor 9MM 15" Handguard

12 Handguard Anchoring Plate

13 9 - 32 5/16 Flat Torx Screw

14 Spring Loaded Flip Up Front Sight

15 Barrel Extension Pin

16 16" SAINT® 9MM Blowback Barrel

17 Springfield Armory® Free Floating Handguard Barrel Nut

18 AR 9MM Pistol Blast Diverter

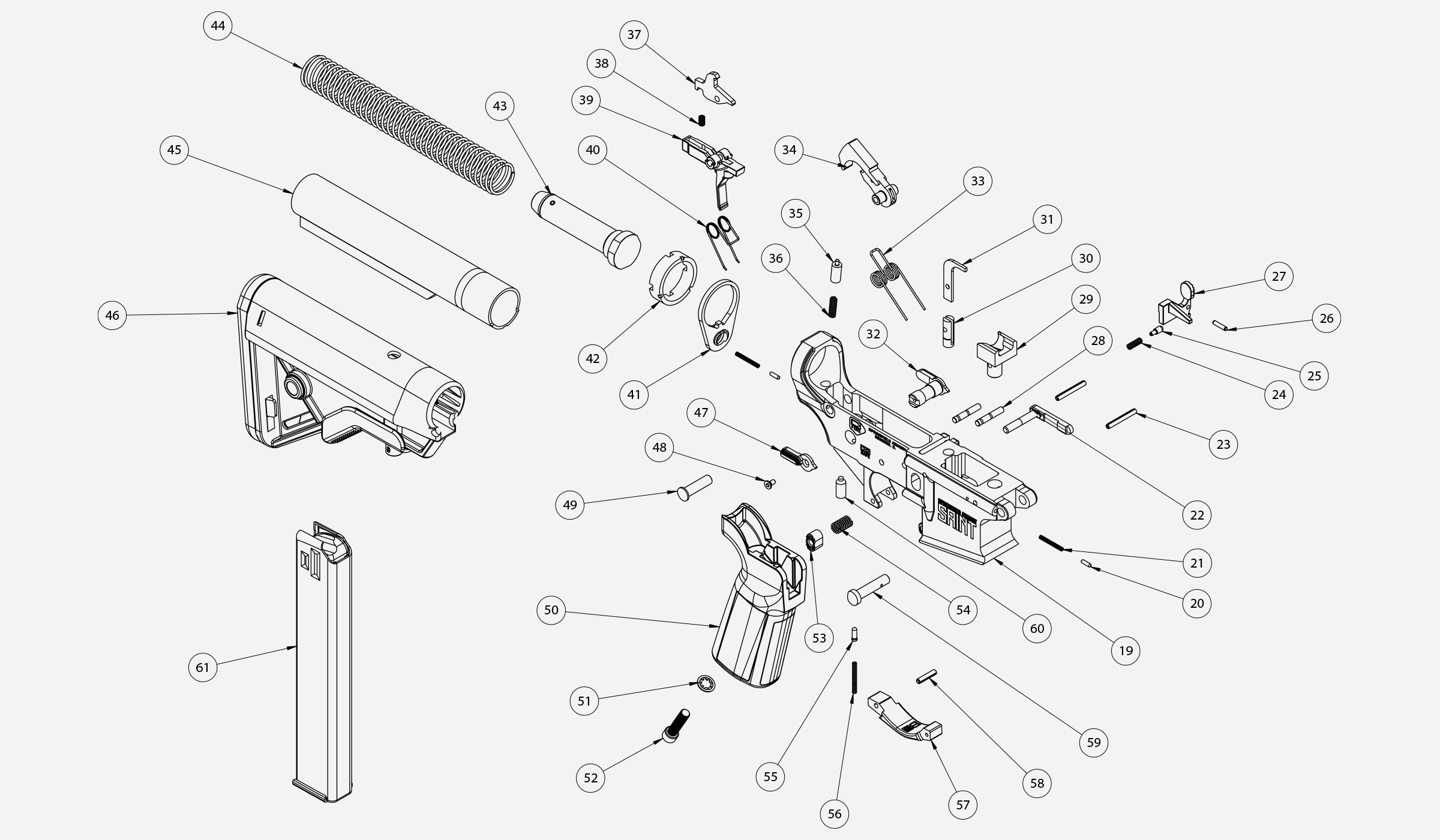

SAINT® Victor - 9MM Carbine Lower Receiver

19 Lower Receiver

20 Takedown Detent

21 Takedown Detent Spring

22 9MM Magazine Catch

23 1/8" Roll Pin, 1" Length

24 Bolt Catch Plunger Spring

25 Bolt Catch Plunger

26 Bolt Catch Pin

27 9MM Bolt Catch

28 Hammer & Trigger Pin

29 9MM Ramp

30 9MM Ejection Carrier

31 9MM Ejector

32 Left Side Ambi Safety

33 Hammer Spring

34 Hammer

35 Buffer Retainer

36 Buffer Retainer Spring

37 Disconnector

38 Disconnector Spring

39 Straight Trigger

40 Trigger Spring

41 Receiver End Plate for QD Stud

42 Receiver, Extension Castle Nut

43 9MM Buffer Assembly

44 Buffer Spring

45 Receiver Extension Tube

46 B5 Bravo Stock Assembly

47 Right Ambi Safety Select Lever

48 Ambi Safety Selector Screw

49 Takedown Pin

50 B5 Type 23 Pistol Grip

51 Pistol Grip Screw Lock Washer

52 Pistol Grip Screw

53 Magazine Catch Button

54 Magazine Catch Spring

55 Safety Selector Detent

56 Safety Selector Detent Spring

57 B5 Trigger Guard Polymer

58 Trigger Guard Pivot Roll Pin

59 Pivot Pin

60 Nylon Tip Tension Set Screw

61 32 Round 9MM Magazine

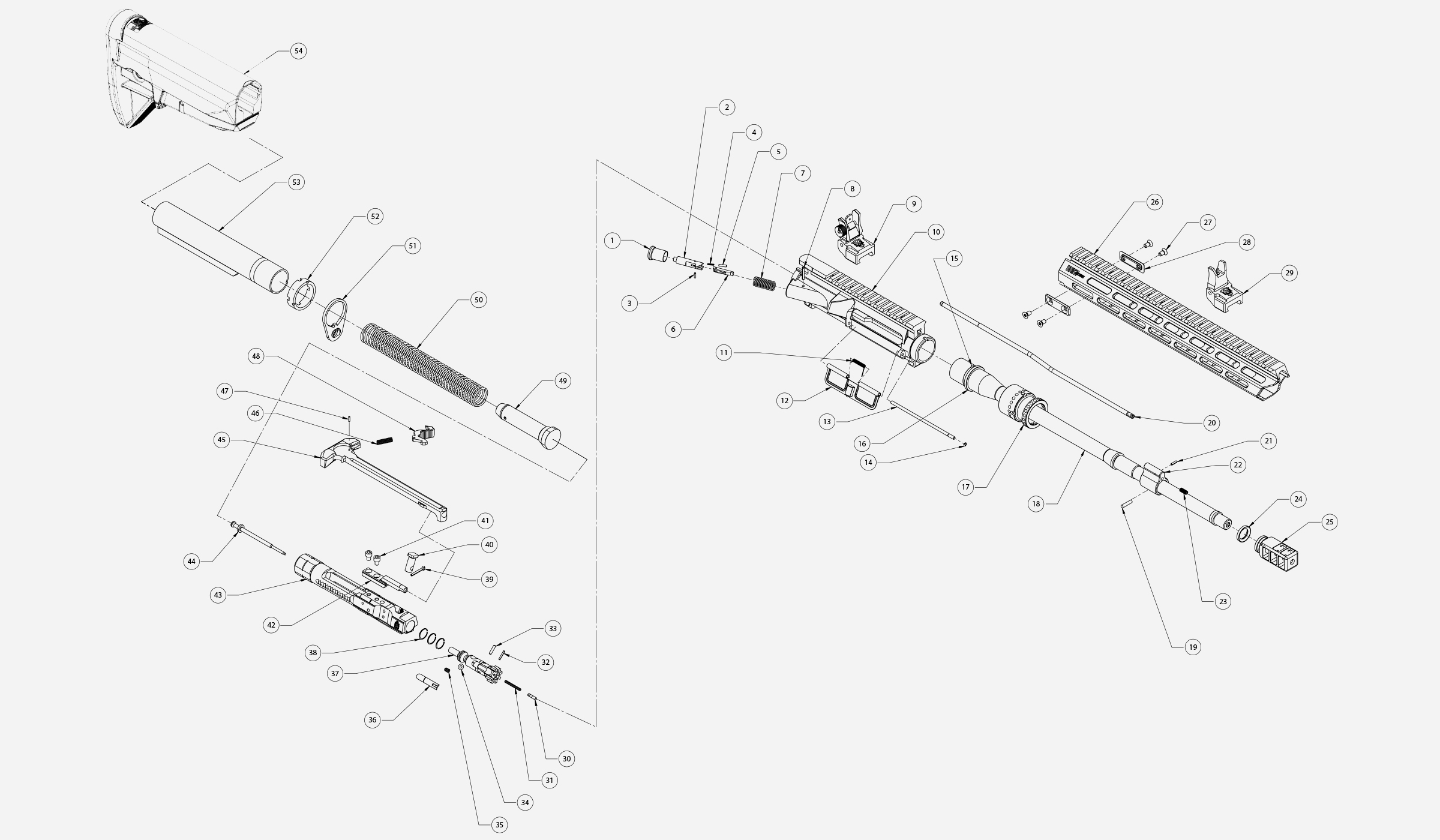

SAINT® Edge - Upper Receiver

1 Plunger Cap

2 Forward Assist Plunger

3 Pawl Spring Pin

4 Pawl Spring

5 Pawl Detent

6 Forward Assist Pawl

7 Forward Assist Spring

8 Forward Assist Spring Pin

9 Flip Up Rear Sight Assembly

10 Upper Receiver

11 Ejection Port Cover Spring

12 Ejection Port Cover Assembly

13 Ejection Port Cover Pin

14 Ejection Port Cover Snap Ring

15 Barrel Extension Pin

16 Barrel Extension, M4

17 Springfield Armory® Free Float Handguard Barrel Nut

18 SA AR 15" Barrel, 16" w/ Extension

19 Gas Block Taper Pin

20 Mid-Length Gas Tube

21 Gas Tube Roll Pin

22 AR Low Profile Adjustable Gas Block

23 Gas Block Adjustable Screw

24 Crush Washer

25 Lightweight Square Compensator

26 EDGE Free Float Handguard

27 8-32 5/16 Flat Torx Screw (4)

28 Handguard Anchoring Plate (2)

29 Flip Up Front Sight Assembly

30 Bolt Ejector

31 Bolt Ejector Spring

32 Bolt Ejector Roll Pin

33 Bolt Extractor Pin

34 AR Extractor O-Ring

35 Bolt Extractor Spring

36 Bolt Extractor

37 Bolt

38 Bolt Gas Ring

39 Firing Pin Retaining Pin

40 Cam Pin

41 Bolt Carrier Key Screw

42 Bolt Carrier Key

43 Bolt Carrier

44 Firing Pin

45 SA Charging Handle

46 Charging Handle Latch Spring

47 Charging Handle Latch Roll Pin

48 SA Charging Handle Latch

49 Buffer Assembly H Style

50 Buffer Spring

51 Receiver End Plate for QD Stud

52 Receiver Extension Castle Nut

53 Receiver Extension Tube

54 Butt Stock

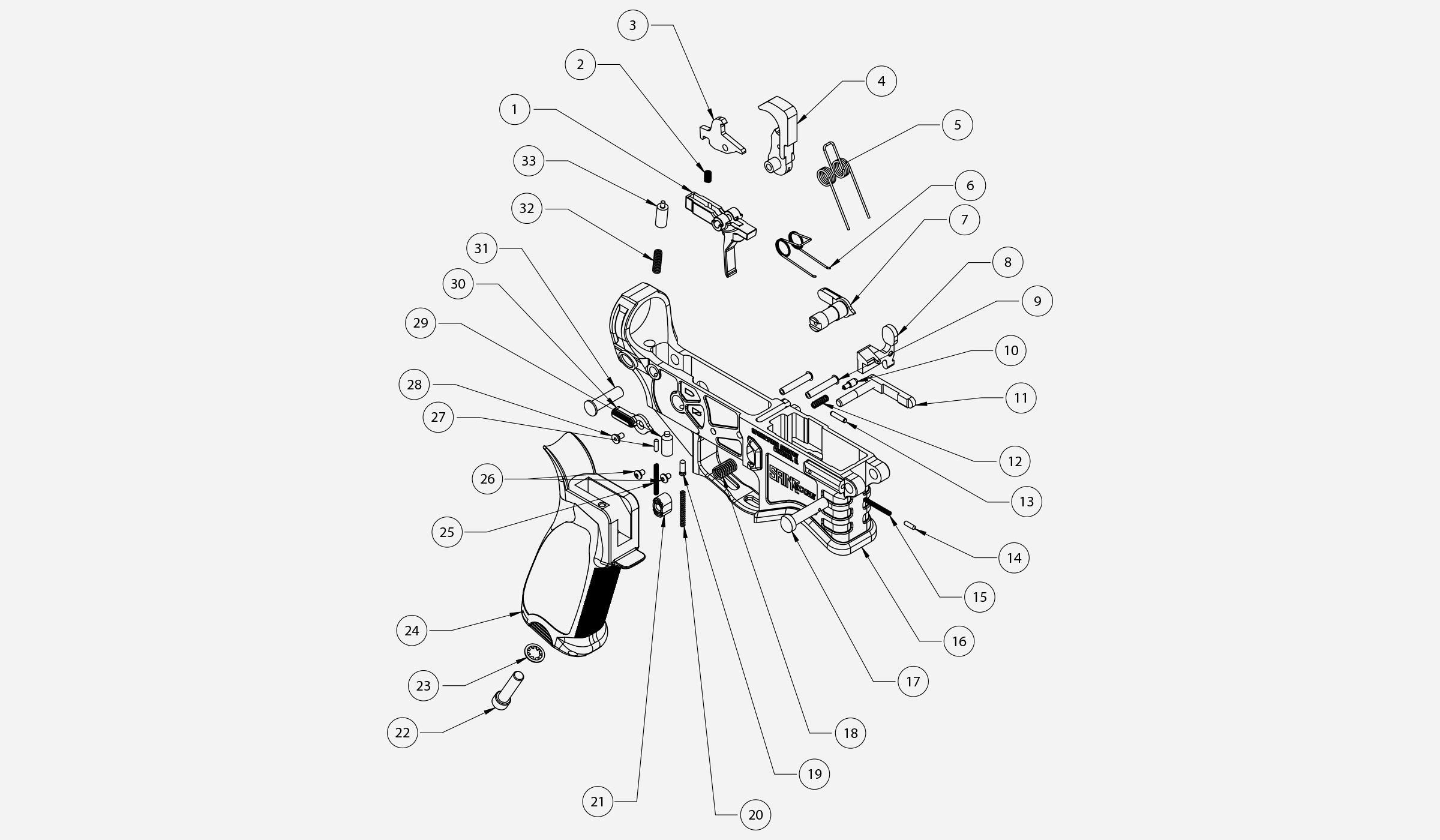

SAINT® EDGE - Lower Receiver



1 AR Drop In Trigger System

2 Disconnector Spring

3 Disconnector

4 Hammer

5 Hammer Spring

6 Trigger Spring

7 90 Degree Ambi Safety Selector (Left)

8 Bolt Catch

9 Hammer/Trigger Pin Antiwalk

10 Bolt Catch Plunger

11 Magazine Catch

12 Bolt Catch Plunger Spring

13 Bolt Catch Pin

14 Takedown Detent

15 Takedown Detent Spring

16 Lower Receiver

17 Pivot Pin

18 Magazine Catch Spring

19 Safety Selector Detent

20 Safety Selector Detent Spring

21 Magazine Catch Button

22 Pistol Grip Screw

23 Pistol Grip Screw Lock Washer

24 Pistol Grip Mod3

25 Takedown Detent Spring

26 Hammer/Trigger Pin Screw Antiwalk

27 Takedown Detent

28 Ambi Safety Selector Screw

29 Nylon Tip Tension Set Screw

30 90 Degree Ambi Safety Selector (Right)

31 Takedown Pin

32 Buffer Retainer Spring

33 Buffer Retainer

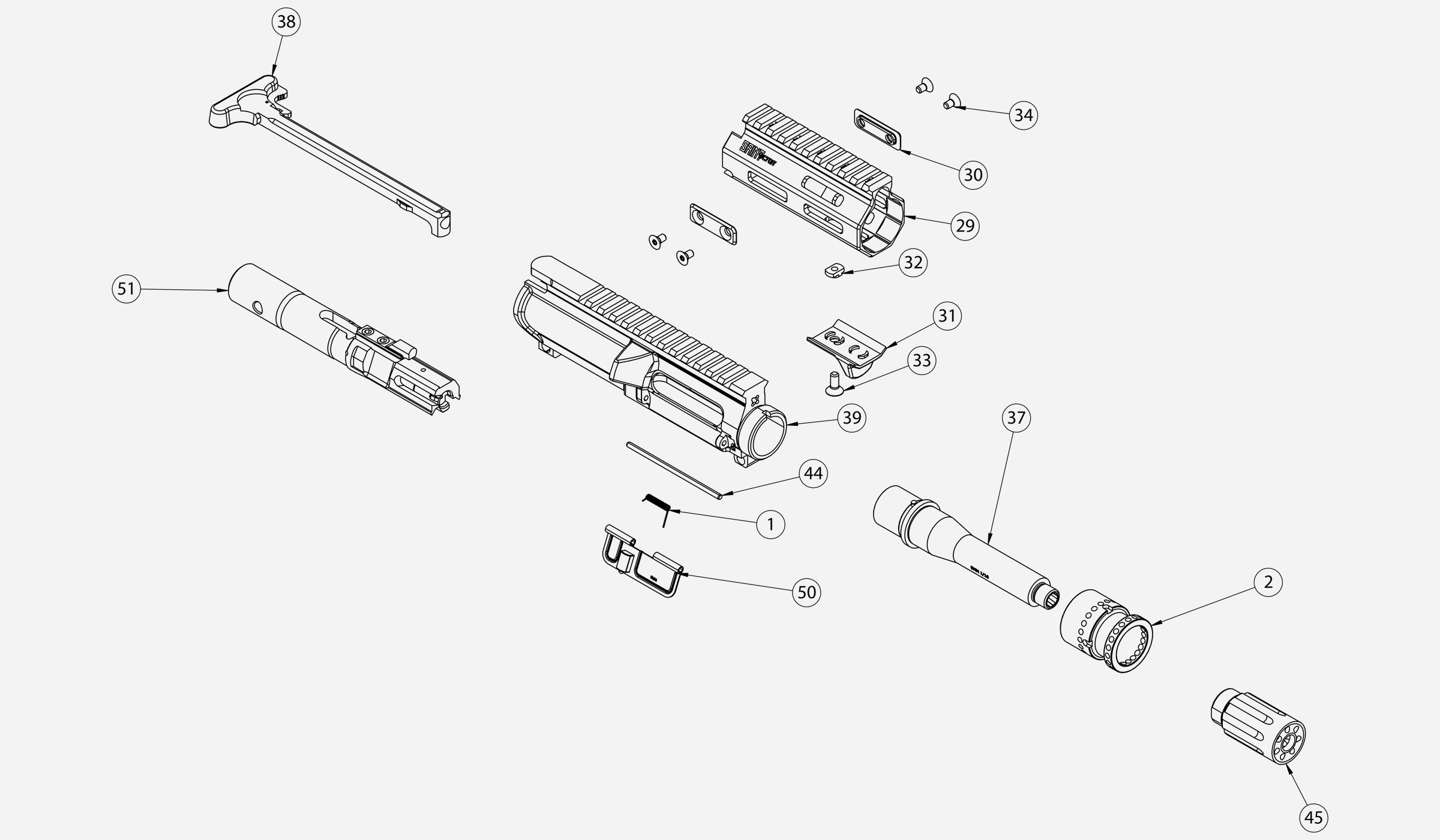

SAINT® Victor PDW - Upper Receiver



1) Ejection Port Cover Spring

2) Free Float Handguard Barrel Nut

29) 9MM Pistol Handguard 5"

30) Handguard Anchoring Plate

31) Hand Stop

32) M-Lok T Nut

33) M-Lok Screw

34) 8-32 5/16 Flat Torx Screw

37) 5.5 LW 9MM Barrel Assembly

38) Charging Handle Assembly

39) Upper Receiver Tungsten

44) Ejection Port Cover Pin

45) 9MM Muzzle Drum

50) Ejection Port Cover Assembly

51) Blow Back BCG Assembly

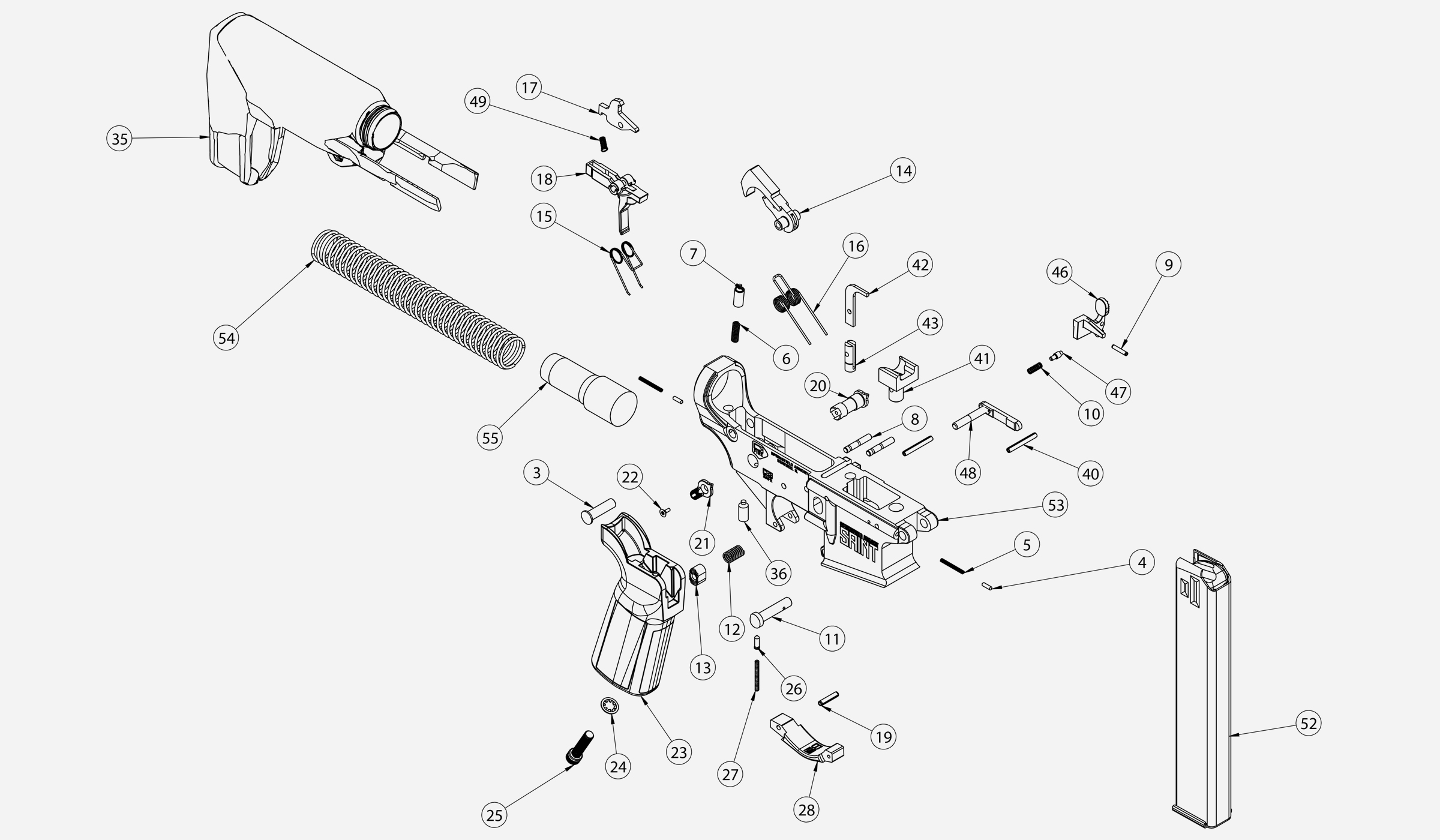

SAINT® Victor PDW - Lower Receiver Parts List

3) Takedown Pin

4) Takedown Detent

5) Takedown Detent Spring

6) Buffer Retainer Spring

7) Buffer Retainer

8) Hammer & Trigger Pin

9) Bolt Catch Pin

10) Bolt Catch Plunger Spring

11) Pivot Pin

12) Magazine Catch Spring

13) Magazine Catch Button

14) Nickel Boron AR Hammer

15) Trigger Spring

16) Hammer Spring

17) Nickel Boron AR Disconnector

18) Nickel Boron Straight Trigger

19) Trigger Guard Pivot Roll Pin

20) Left Side Ambi Safety

21) Short Right Ambi Safety Select Lever

22) Ambi Safety Selector Screw

23) B5 Type 23 Pistol Grip Black

24) Pistol Grip Screw Lock Washer

25) Pistol Grip Screw

26) Safety Selector Detent

27) Safety Selector Detent Spring

28) B5 Trigger Guard Polymer

35) SB Tactical HBPDW 9MM Brace Black

36) Nylon Tip Tension Set Screw

40) 1/8" Roll Pin, 1" Length

41) 9MM Ramp

42) 9MM Ejector

43) 9MM Ejector Carrier

46) 9MM Bolt Catch

47) 9MM Bolt Catch Plunger

48) 9MM Magazine Catch

49) 9MM Disconnector Spring

52) 32 Round 9MM Magazine

53) 9MM Lower Receiver Tungsten

54) PDW Buffer Spring

55) PDW Buffer
